The Ultimate Guide to Passive DAS Systems

The fast, cost-effective coverage solution

Passive DAS solutions work best in buildings up to 500,000 sq ft and rely on signal. These systems are particularly suited for environments where simplicity, affordability, and reliable performance are key considerations. By utilizing a donor signal from an external source, Passive DAS efficiently amplifies and distributes connectivity indoors, ensuring uninterrupted communication and improved user experience.

Designed with cost-conscious organizations in mind, Passive DAS provides high-quality coverage for smaller and medium-sized facilities without the need for extensive infrastructure upgrades. Its ease of installation and maintenance makes it ideal for projects with straightforward coverage needs.

‍

What is an Passive DAS?

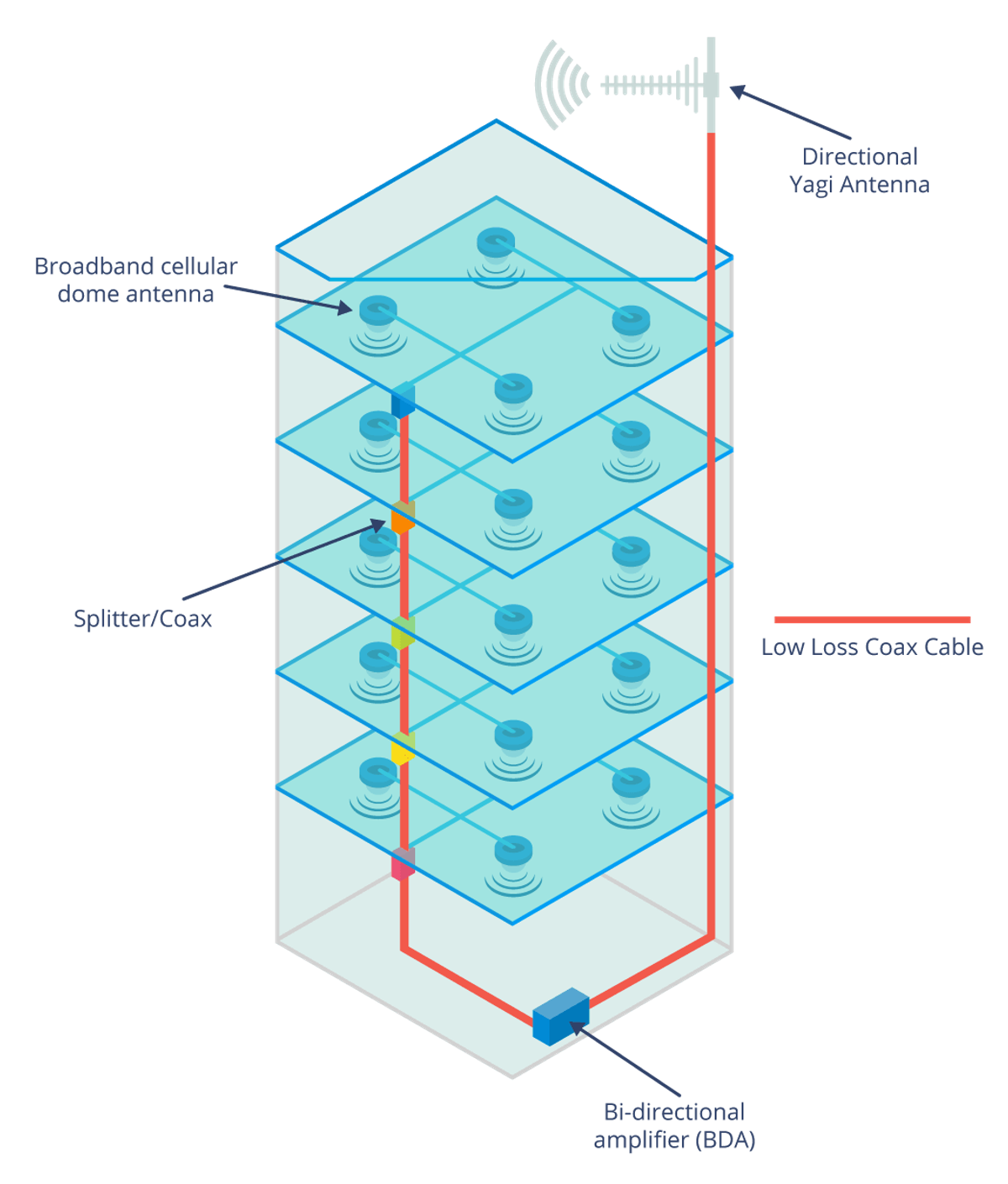

Passive Distributed Antenna Systems (DAS) amplify signal from a "donor" location–usually on the roof of the building–and rebroadcast the signal inside the building. The donor signal is amplified by a bi-directional repeater, which is connected to a network of passive components, including coaxial cable, splitters, couplers, and antennas.

The Pros of Passive DAS

Passive DAS offers a cost-effective approach for smaller buildings and facilities. By leveraging simpler technologies, it ensures reliable connectivity without the complexities of active or hybrid systems. Key benefits include:

• Budget-Friendly Installation: With fewer components and no need for extensive fiber cabling, Passive DAS installations are often faster and less expensive.
• Low Maintenance: These systems require minimal upkeep, making them ideal for organizations with limited IT or facilities management resources.
• High Compatibility: Passive DAS can integrate with existing infrastructure, reducing the need for extensive retrofitting or upgrades.

These advantages make Passive DAS a go-to solution for businesses prioritizing cost savings and simplicity without compromising on coverage quality. Explore more about Passive DAS benefits.

‍

Use Cases for Passive DAS

Passive DAS excels in environments where simplicity and affordability are priorities. Its straightforward design ensures that even small organizations can benefit from enhanced connectivity without undergoing extensive upgrades. Ideal use cases include:

• Retail Spaces: Provide reliable in-store connectivity to support customer experiences and point-of-sale systems.
• Small Office Buildings: Enhance signal strength for daily operations without overhauling infrastructure.
• Health Clinics: Ensure critical communication for staff and medical devices in compact healthcare settings.

These use cases highlight the versatility of Passive DAS in meeting the needs of various industries. From healthcare to retail, Passive DAS enables organizations to overcome communication challenges effectively and affordably. Learn more from case studies.

‍

How Passive DAS Works

The system relies on a simple yet effective approach that ensures high-quality signal distribution throughout the building. By leveraging its core components, Passive DAS delivers reliable coverage with minimal complexity. Passive DAS follows a streamlined process to enhance indoor connectivity:

1. Donor Signal Acquisition: A donor antenna, often placed on the roof, captures cellular signals from nearby towers.
2. Signal Amplification: The bi-directional repeater strengthens the incoming signal to ensure robust distribution.
3. Signal Distribution: Amplified signals travel through a network of coaxial cables, splitters, and couplers to indoor antennas.
4. Indoor Broadcast: Indoor antennas rebroadcast the signal, ensuring reliable coverage throughout the building.

This simplified design is a key factor in the cost-effectiveness of Passive DAS, making it an ideal choice for smaller buildings with straightforward connectivity requirements.

‍

Comparing Passive DAS with Active and Hybrid Systems

While Active and Hybrid DAS cater to larger, more complex environments, Passive DAS stands out for its simplicity and cost-effectiveness. Here’s a quick comparison:

• Active DAS: Offers unparalleled capacity for high-traffic venues but at a significantly higher cost. Learn more about active DAS.
• Hybrid DAS: Blends affordability with performance, suitable for medium-sized buildings. Learn more about hybrid DAS.
• Passive DAS: Best for smaller spaces with straightforward coverage needs.

By understanding these distinctions, organizations can select the right DAS solution to meet their specific needs. Learn about how Passive DAS differs from Active and Hybrid systems.

‍

Real-World Examples of Passive DAS Implementation

Passive DAS systems are used across various industries to solve communication challenges effectively. Many organizations across various industries have successfully deployed Passive DAS systems:

• Educational Institutions: Schools and universities use Passive DAS to support administrative communication and student connectivity.
• Retail Outlets: Shopping centers and standalone stores implement Passive DAS to enhance customer experiences and ensure efficient payment processing.
• Logistics Facilities: Warehouses and distribution centers rely on Passive DAS to maintain uninterrupted communication among staff.

These examples demonstrate how Passive DAS adapts to the needs of diverse environments, delivering reliable connectivity and improving operational efficiency. Learn more from real-world case studies.

‍

Evolving with Technology

As wireless technologies advance, Passive DAS continues to adapt. This adaptability ensures that the system remains relevant and capable of supporting emerging needs. Key advancements include:

• 5G-Ready Upgrades: Many Passive DAS components are now designed to support emerging 5G frequencies.
• IoT Integration: Supporting IoT devices for smart building applications is becoming increasingly common.
• Improved Energy Efficiency: Newer bi-directional repeaters consume less power, making systems more sustainable.

These advancements underscore the role of Passive DAS as a reliable and forward-thinking solution in the wireless connectivity landscape.

‍

Planning for a Passive DAS Installation

When preparing for a Passive DAS deployment, consider the following:

1. Signal Source Assessment: Ensure a strong and reliable donor signal is available from external cellular towers.
2. Coverage Needs Analysis: Determine the areas within the building that require enhanced connectivity.
3. Component Selection: Choose high-quality cables, splitters, and antennas to minimize signal loss.
4. Professional Installation: Engage experienced installers to design and deploy the system efficiently.

For a tailored Passive DAS solution, consult with a trusted provider like RSRF or explore other leading vendors specializing in customized DAS configurations.
