Distributed Antenna System Architecture: Complete Guide to DAS Architecture

Distributed Antenna Systems (DAS) are essential for ensuring reliable cellular connectivity and wireless service in areas where traditional networks fall short. These systems amplify and distribute cellular signals, providing high-quality wireless signal coverage even in larger buildings with challenging layouts.

Effective DAS configurations are critical to enhancing wireless communication in offices, hospitals, and stadiums, where building materials and distance from a nearby cell tower can weaken cellular service.

What is Distributed Antenna System Architecture?

Distributed Antenna System (DAS) architecture is the design and organization of spatially separated antennas and components connected to a centralized signal source. Its purpose is to distribute signals effectively, ensuring seamless wireless coverage in areas with weak or obstructed cell signals.

A well-designed DAS architecture integrates multiple carriers and technologies, providing reliable and scalable communication.

Key Features of Effective DAS Systems Architecture

• Signal Distribution System: Ensures seamless signal coverage through fiber optic, coaxial, or Ethernet cables.

• Multiple Antennas: Strategically placed DAS antennas, including indoor antennas, to provide adequate coverage.

• Scalability: Supports network expansion units for future growth.

• Compatibility: Works with multiple carriers and signal sources, such as donor signals from nearby cell towers.

• Adaptability: Configurable to support hybrid DAS systems, digital signals, and analog systems based on requirements.

Benefits of Optimized DAS Architecture

• Enhanced Wireless Coverage: Eliminates dead zones and ensures consistent signal strength across the building.

• Reliable Connectivity: Supports high-quality wireless signal delivery for cellular DAS and Wi-Fi access.

• Future-Ready Infrastructure: Scalable design accommodates network upgrades, including 5G deployment.

• Improved Public Safety: Provides reliable communication for first responders during emergencies.

• Efficient Signal Distribution: Fiber distribution and amplified signals reduce signal loss, ensuring robust performance.

• Cost-Effective Performance: Hybrid DAS systems balance initial investment with long-term benefits.

• Support for Multiple Carriers: Allows integration with multiple carriers to provide universal cellular service.

• Adaptability for Complex Environments: Effective in larger buildings, stadiums, or areas with challenging layouts.

• Seamless Communication: Ensures uninterrupted wireless communication for smart devices, enhancing productivity and user experience.

Components of DAS Architecture

Signal Source

The signal source in a Distributed Antenna System (DAS) originates from a cell carrier’s network. It may come directly from a base station, remote radio units, or off-air antennas capturing a carrier’s signal.

The quality of the signal source determines the effectiveness of the DAS implementation, ensuring reliable radio frequency transmission.

Distribution Network

The distribution network includes active antennas, amplifiers, and fiber distribution systems to extend coverage across large areas. This hybrid distributed antenna system combines active and passive components to ensure seamless wireless communication.

Antennas

DAS antennas, including off-air antennas and indoor units, are strategically placed to provide effective communication. These spatially separated antennas distribute radio frequency (RF) signals evenly, overcoming barriers caused by building materials.

Head-End Equipment

The head-end processes the carrier’s signal and manages the system’s operation. It includes components like signal amplifiers, remote radio units, and network management tools to maintain an amplified signal across the system.

Cabling (Fiber Optic, Coaxial)

Fiber optic cables and coax cables form the backbone of DAS, enabling efficient fiber distribution and signal transfer. While fiber optic cables support digital DAS and long-distance transmission, coaxial cables are used for localized signal delivery.

Signal Flow in DAS Architecture

Signal Reception

DAS starts by receiving a signal source from a nearby cell tower, base station, or off-air DAS setup. A site survey ensures the system is optimally positioned for maximum signal capture.

Signal Amplification

Amplifiers and repeaters boost the received signal. These components ensure the amplified signal can overcome physical barriers and effectively cover extensive areas.

Signal Distribution

Once amplified, the signal is distributed through the cabling network and antennas, which may include coax cables and fiber optic systems. It ensures consistent coverage across the building or geographical area.

Types of DAS Architecture

Passive DAS Architecture

Signal Reception: Passive DAS systems rely on a carrier’s signal captured by off-air antennas or a common public radio interface. These systems do not have active components for signal enhancement.

Signal Amplification: Amplification occurs passively through coax cables and splitters. The system does not use active amplifiers, which can limit its ability to handle weak signals over long distances.

Signal Distribution: Signals are distributed through coaxial cabling to DAS antennas. While cost-effective, passive DAS systems may face challenges providing adequate coverage in larger buildings or areas with complex layouts.

Active DAS Architecture

Signal Reception: Active DAS systems receive a clean signal source directly from a carrier's base station or remote radio units. This setup allows for better integration with digital DAS systems for enhanced functionality.

Signal Amplification: Active systems use amplifiers and active antennas to ensure the RF signals maintain high strength across the network. This approach ensures an amplified signal is robust enough to cover large areas or penetrate dense building materials.

Signal Distribution: Signals are distributed using fiber optic cables, which enable long-distance transmission without degradation. Active DAS is ideal for high-capacity environments requiring reliable and scalable coverage.

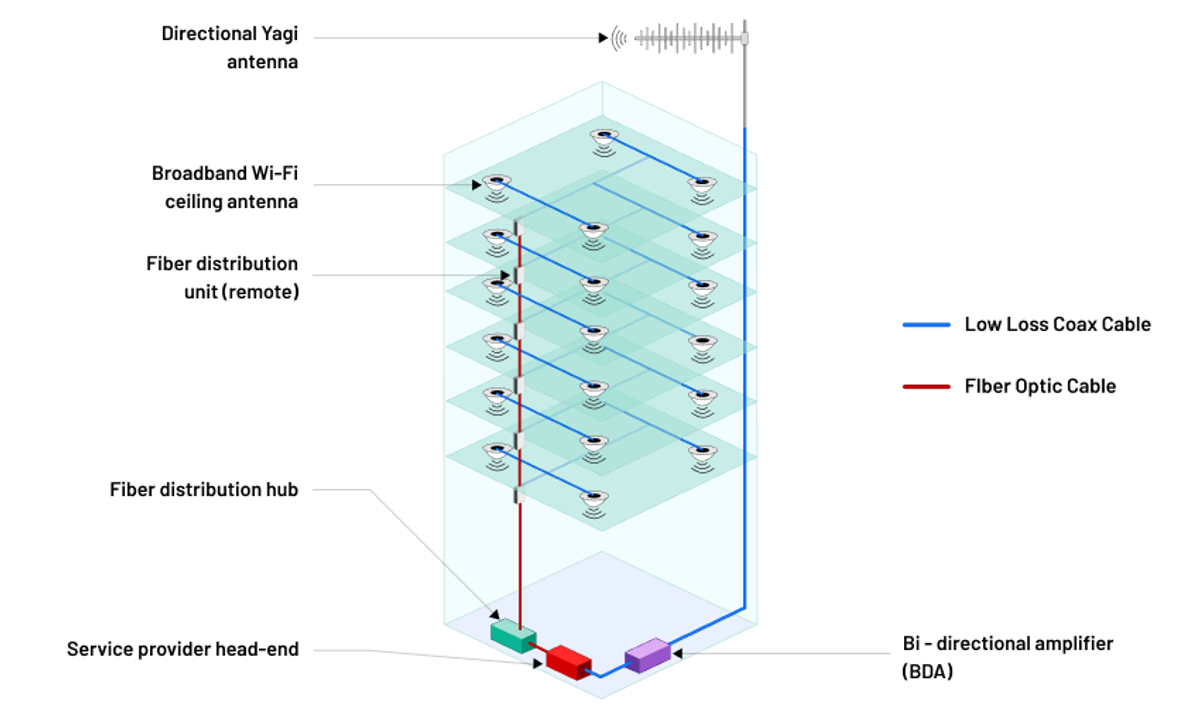

Hybrid DAS Architecture

Signal Reception: Hybrid distributed antenna systems combine passive and active DAS elements. They can receive signals from off-air antennas, cell carriers, or base stations, offering flexibility in signal reception.

Signal Amplification: These systems utilize active and passive RF components. Amplifiers and active antennas handle critical areas requiring stronger signals, while passive system components manage simpler zones.

Signal Distribution: A hybrid DAS distributes signals through a combination of fiber optic and coaxial cables.

DAS Architecture Design Considerations

Building Layout and Materials

The structure of the building and the materials used (e.g., concrete, glass, metal) can significantly impact signal propagation. A site survey is essential to identify potential barriers and optimize DAS configurations.

Signal Source

The type of signal source—whether from a nearby cell tower, off-air antennas, or a dedicated base station—affects the system's performance. Ensuring a strong and reliable carrier's signal is crucial.

Coverage Requirements

Identify areas needing enhanced cellular connectivity, including dead zones and high-traffic areas, to ensure the DAS provides adequate coverage.

Type of DAS

You can select between passive, active, or hybrid DAS systems based on factors like building size, signal distribution requirements, and cost constraints.

Scalability

Future-proof the system by including network expansion units to accommodate growing wireless communication demands or additional carriers.

Cabling Infrastructure

Choose the appropriate cabling—fiber optic cables for long-distance transmission or coax cables for localized distribution—based on the system's design.

Compliance with Regulations

Ensure the DAS design adheres to local and industry standards for public safety and effective communication.

Carrier Coordination

Work with multiple carriers to provide seamless wireless service across all networks.

Challenges in DAS Architecture

• High Implementation Costs: Designing and deploying a DAS requires significant investment in equipment, cabling, and labor, especially in larger buildings or complex environments.

• Integration Complexity: Combining active systems, passive components, and hybrid configurations demands careful planning and expertise to avoid performance issues.

• Carrier Coordination: Working with multiple carriers to support their signal sources can delay implementation and increase complexity.

• Scalability Issues: Expanding the system for future coverage needs requires advanced planning and additional resources.

• Building Constraints: Dense building materials like concrete and metal can hinder signal propagation, requiring additional equipment to maintain signal strength.

Monitoring and Maintenance of DAS Architecture

Effective monitoring and maintenance are essential to ensure long-term DAS performance:

• Remote Monitoring: Use network management tools to track system performance, identify issues, and optimize signal strength in real-time.

• Routine Inspections: Conduct regular site surveys to check for hardware wear, cabling integrity, and changes in coverage needs.

• Component Upgrades: Replace outdated equipment, such as remote radio units and amplifiers, to maintain compatibility with advancing technologies like 5G.

• Carrier Adjustments: Periodically coordinate with carriers to ensure signal updates and expansions are reflected in the system.

Key Takeaways

A well-designed DAS architecture is essential for providing seamless wireless coverage, extending cellular connectivity, and future-proofing communication infrastructure.

You can implement DAS solutions that deliver reliable performance and effective communication by addressing challenges like cost, scalability, and integration.
