DAS Antennas: An In-Depth Guide to Enhancing Cellular Coverage

Antennas form the backbone of Distributed Antenna Systems (DAS) and play a critical role in providing reliable connectivity and seamless cell signal within buildings and complex structures. Understanding DAS system antennas, including their types, functions, deployment strategies, and best practices, is essential for optimizing cellular signals indoors.

This comprehensive guide will explore DAS antennas in detail, helping building owners, managers, and IT professionals make informed decisions about their in-building wireless solutions.

Understanding DAS Antennas

A Distributed Antenna System (DAS) enhances indoor coverage by distributing a cellular carrier's signal throughout a building. DAS antennas receive signals from a signal source—such as a nearby cell tower or a base transceiver station—and redistribute the wireless coverage evenly across indoor areas through coaxial or fiber optic cable networks.

DAS antennas are designed to mitigate common indoor signal challenges, such as signal loss caused by building materials, long cable runs, and interference from other electronic devices. They ensure high-quality voice calls, improved data connectivity, and robust public safety communications, especially for first responders in critical scenarios.

Key Components of a DAS Antenna System

Every DAS network comprises two basic components:

1. Signal Source: This can be a direct connection to the carrier's network via a base transceiver station, an off-air connection from nearby cell towers, or small cells.
2. Distribution System: This involves coaxial cables, fiber optics, remote units, and antennas that transmit and receive signals within the building.

Types of DAS Antennas

‍

DAS antennas are classified based on their operational mechanism and coverage needs. The main types include:

Omni-directional Antennas

Omni-directional antennas broadcast and receive signals uniformly in all directions. These are ideal for coverage in large, open indoor spaces such as lobbies, convention centers, and warehouses. Their uniform radiation pattern ensures seamless connectivity and reliable cellular coverage across broad areas.

Applications:

• Convention centers
• Airports
• Large retail spaces

Directional Antennas

Directional antennas focus signals in a specific direction, providing stronger coverage in targeted areas. They are suitable for covering corridors, tunnels, underground spaces, and specific office spaces or rooms within larger venues.

Applications:

• Underground parking garages
• Long corridors or hallways
• Elevator shafts

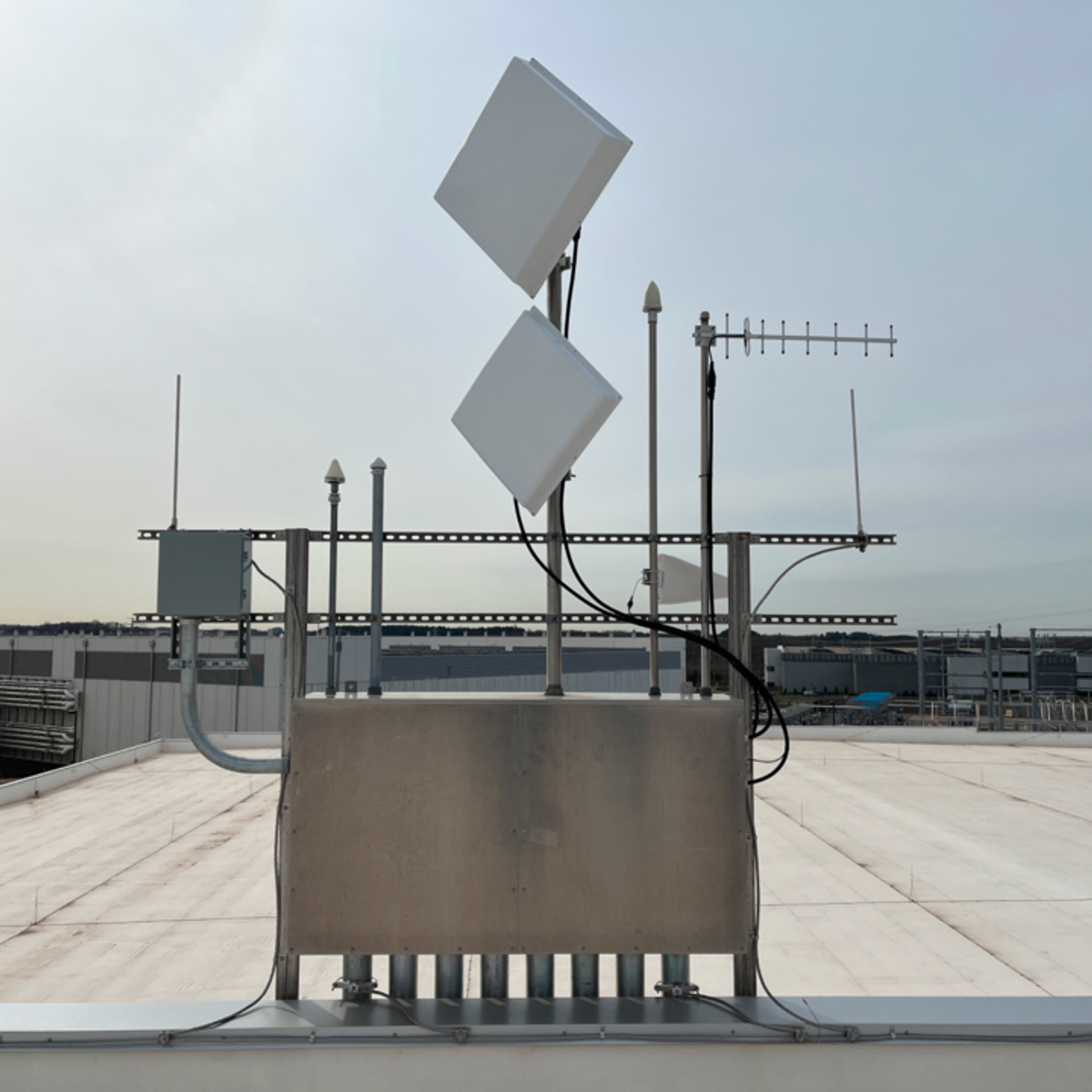

Panel Antennas

Panel antennas are flat, directional antennas designed for mounting on walls or ceilings. They provide focused coverage in specific directions, minimizing signal interference and enhancing the user experience in smaller indoor areas.

Applications:

• Office spaces
• Hotel rooms
• Healthcare facilities and patient care areas

Dome Antennas

Dome or ceiling antennas are commonly used for indoor coverage because of their discrete appearance and omni-directional signal distribution. Mounted on ceilings, dome antennas provide consistent coverage across large indoor areas with minimal visibility.

Applications:

• Shopping malls
• Hospitals
• Office buildings

Yagi Antennas

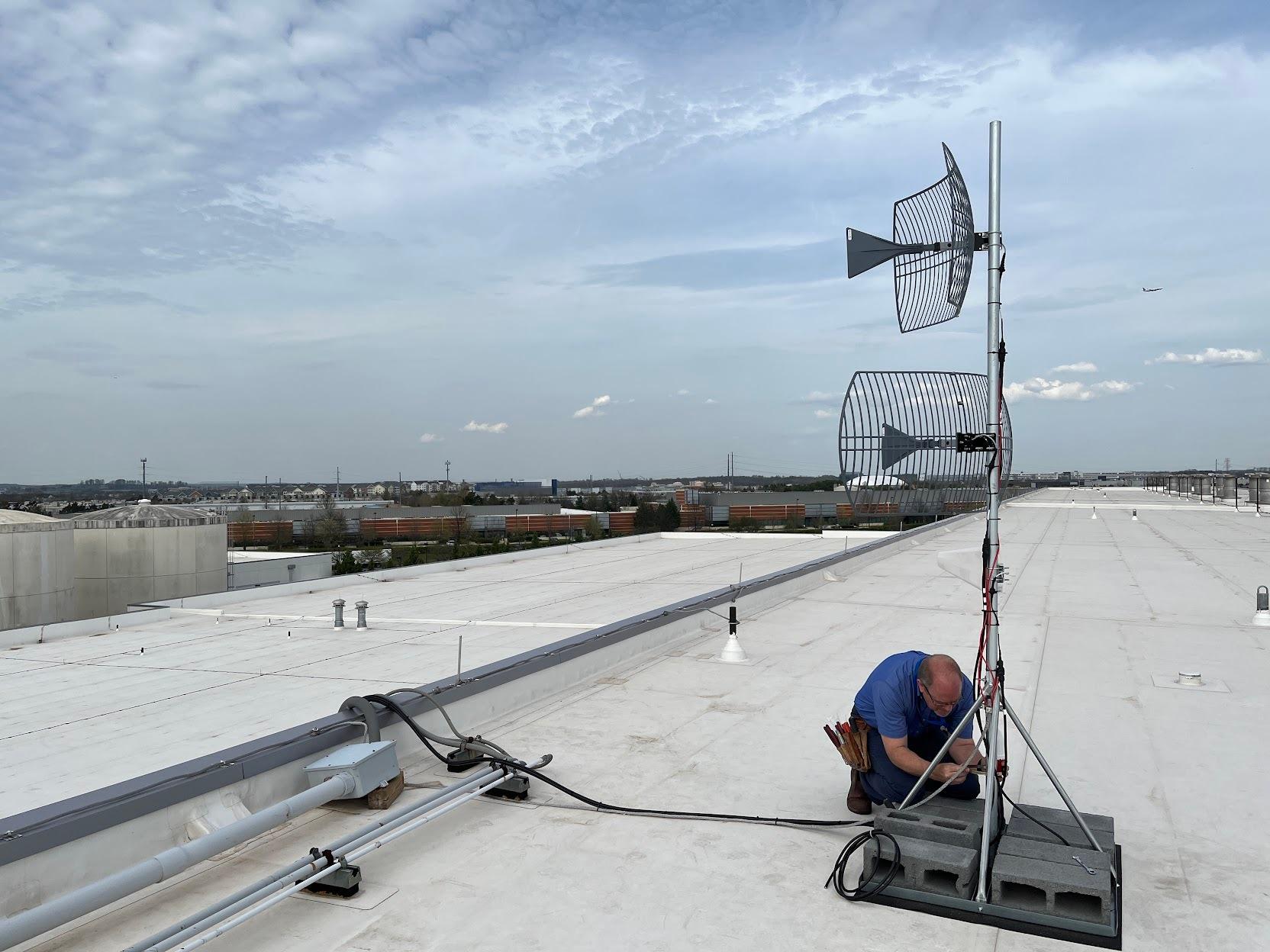

Yagi antennas are directional antennas known for their high gain and precise signal focus. They are particularly effective in capturing off-air signals from distant cell towers and feeding them into a DAS.

Applications:

• Off-air signal capture from distant towers
• Outdoor to indoor signal relay

Active vs. Passive DAS Antennas

Active DAS Antennas

Active DAS uses powered components, such as amplifiers and remote units, to distribute cellular signals. Its antennas rely on fiber optic cables, enabling minimal signal loss even over long cable runs. This approach supports extensive indoor coverage and high user capacity, making it ideal for large venues like stadiums, airports, or the World Trade Center.

Passive DAS Antennas

Passive DAS solutions do not require powered components; they rely on passive elements like splitters, coaxial cables, and antennas. While cost-effective, passive systems typically experience signal loss over long cable runs, limiting their effective coverage area.

Hybrid DAS Antennas

Hybrid DAS combines elements of active and passive systems, strategically utilizing fiber optics and coaxial cables. This balanced approach offers an optimized solution with efficient signal distribution, enhanced indoor coverage, and manageable power requirements.

Antenna Placement and Deployment Strategies

‍

Strategically deploying antennas is critical for achieving optimal cellular DAS coverage. Here are the key considerations:

Coverage and Capacity Planning

Evaluate indoor coverage needs thoroughly, considering user capacity, building layout, materials, and expected radio frequency usage. Proper planning ensures effective antenna placement, significantly reducing signal interference and coverage gaps.

Signal Strength and Quality

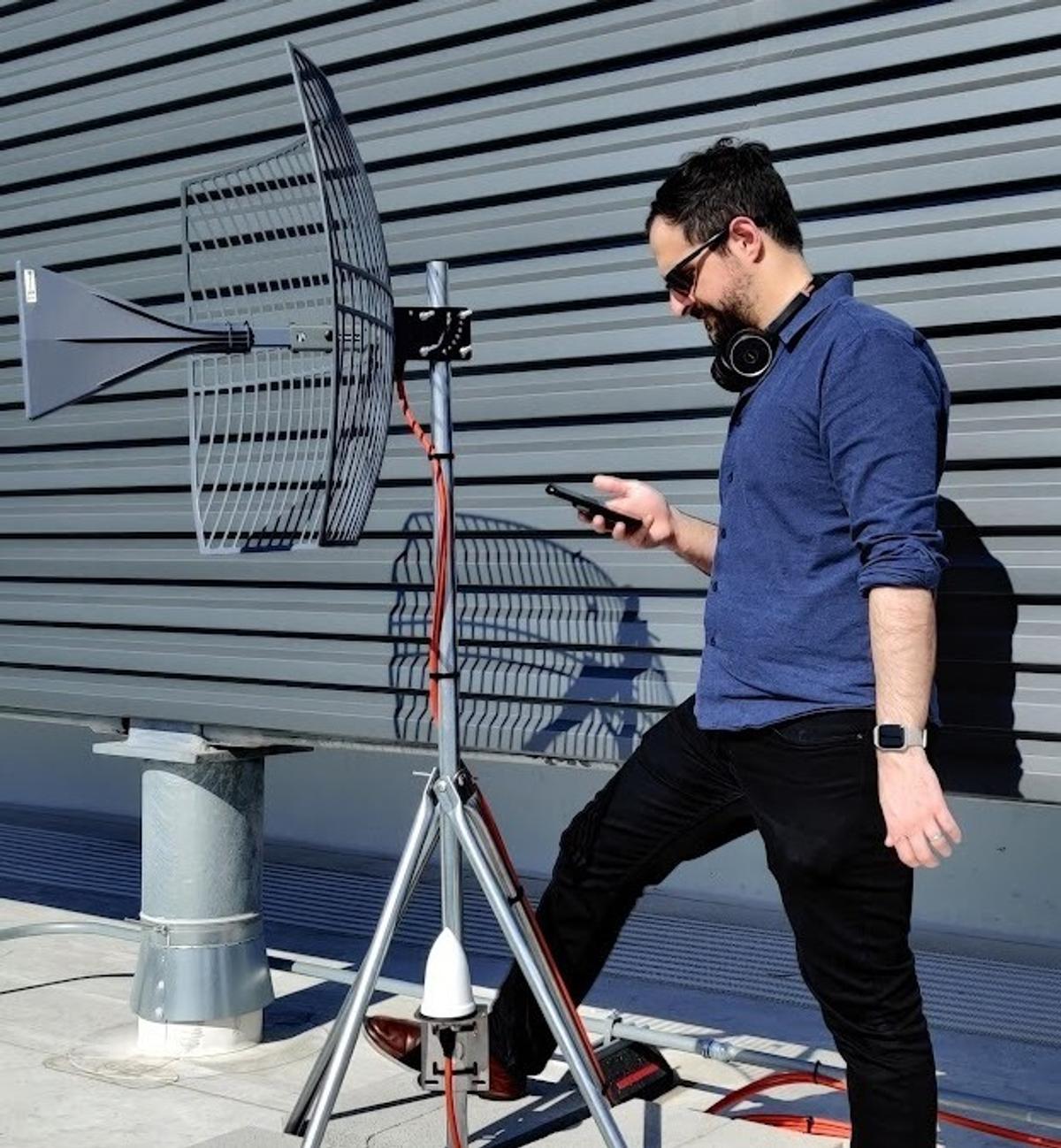

Optimal antenna placement maximizes signal strength and ensures reliable cellular connectivity. Conduct comprehensive site surveys to identify areas with weak cellular signals and strategically place antennas for maximum efficiency.

Mitigating Signal Interference

Avoid positioning antennas near metal objects, HVAC systems, or other electronic equipment, as these can cause significant signal loss and interference. Consider potential interference sources during the antenna design phase to ensure seamless connectivity.

DAS Antenna Frequencies and Compatibility

DAS antennas must align with the carrier's licensed frequencies to provide reliable cellular coverage. Modern DAS antennas support multiple frequency bands, including common cellular bands and newer frequencies like the C-band, facilitating future-proof deployments.

Ensuring frequency compatibility with carrier signals is crucial for seamless integration with a carrier's network, enhancing user experiences through robust cellular connectivity and data throughput.

Challenges in DAS Antenna Deployment

Implementing a DAS network comes with specific challenges:

• Building Materials: Dense materials like concrete, steel, and energy-efficient glass often degrade indoor cellular signals significantly, requiring more robust DAS solutions.
• Time and Cost Factors: DAS installation is often design-intensive and time-consuming, requiring careful planning and budgeting. However, passive DAS solutions offer more cost-effective options for smaller buildings.
• Long Cable Runs: DAS installations with extensive coaxial cable runs can experience substantial signal loss, necessitating active or hybrid DAS to maintain optimal performance.

Conclusion: Choosing the Right DAS Antenna Solution

Selecting appropriate DAS antennas involves understanding your specific coverage needs, user capacity requirements, building structure, and frequency compatibility. Collaborating with experienced DAS providers ensures your system design meets current and future connectivity demands.
